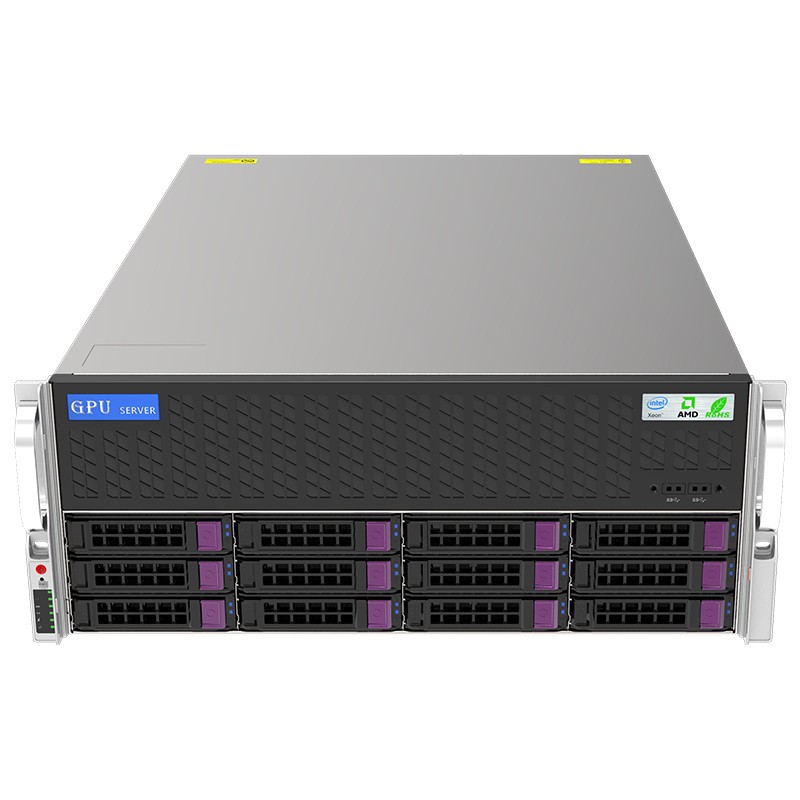

CXS3412G4 Server Chassis Specifications

Chassis Model

CXS3412G4

Dimensions & Material

438 mm × 177 mm × 660 mm
Material: SGCC Galvanized Steel from China Steel Corporation (CSC), Taiwan

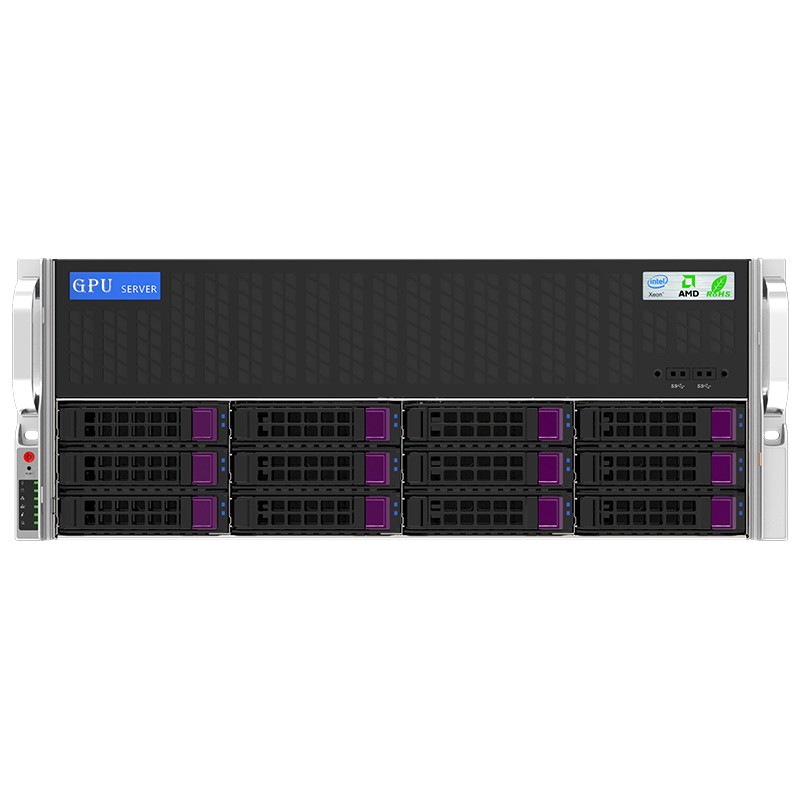

Front Panel

• POWER switch

• RESET button

• Power / HDD / Network / Alarm / Status indicator LEDs

• 2 × USB 3.0 ports

Storage Support

• Front: 12 × 3.5" hot-swappable drive bays,      compatible with 2.5" drives

• Internal: Supports 2 × 3.5" / 2.5" internal HDD      modules

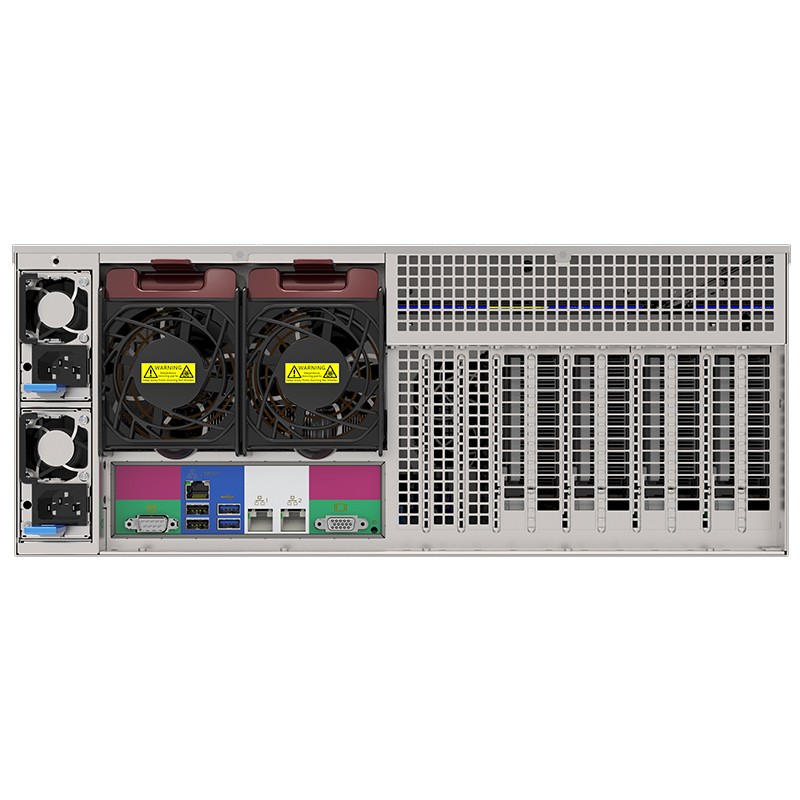

PCIe Expansion

• Supports 11 × full-height PCIe expansion slots

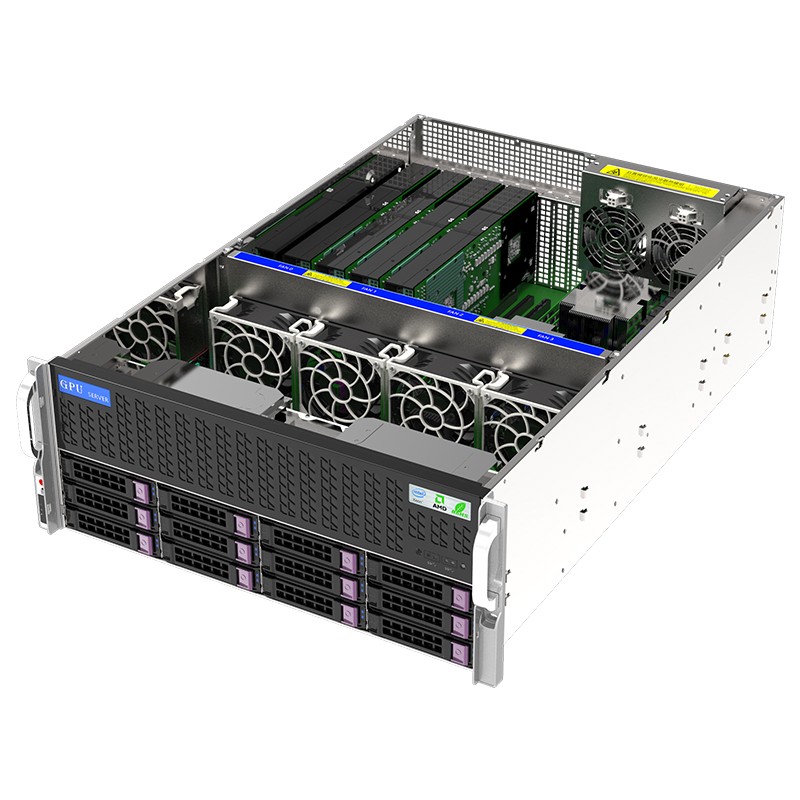

System Cooling Fans

• Overall vibration-damping design

• Standard configuration: 4 × 9238 hot-swappable system fan      modules

• Silent version / PWM control

• High-quality fans with a rated service life of 50,000 hours

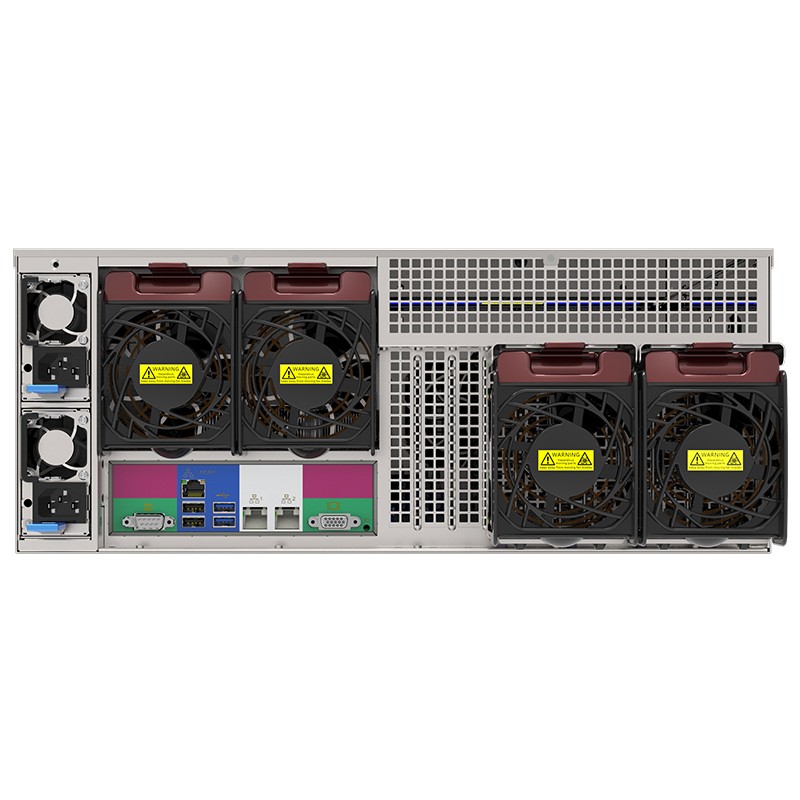

• Rear: Supports 2 × 8038 hot-swappable fan modules

• External: Supports 2 × 8038 hot-swappable fan modules      (Optional)

Backplane

• Supports 8 × SAS/SATA 12 Gbps direct-attached backplane

• Optional expansion backplane

• 8 × SAS/SATA + 4 × NVMe hybrid backplane

Power Supply

Supports redundant power configurations:

• 1300W / 1600W / 2000W / 2700W

• 80 PLUS Platinum-rated CRPS 1+1 high-efficiency redundant      power supply

Motherboard Compatibility

Supports:

• X11DPG-QT

• X12DPG-QT

• T3DGQ

Environmental Specifications

Operating Temperature:
10°C to 35°C

Operating Humidity:
8%–90% RH, non-condensing

Storage Temperature:
-40°C to 70°C

Storage Humidity:
5%–95% RH, non-condensing

Optional Configurations

Hot-Swappable HDD Backplane

• 8 × SAS/SATA 12 Gbps direct-attached backplane

• Expansion backplane

• 8 × SAS/SATA + 4 × NVMe hybrid backplane

Single / Redundant Power Supply

1+1 Redundant Power Supply:
1300W / 1600W / 2000W / 2700W original power supplies, 80 PLUS Platinum-rated (Optional)

2 × 2.5" HDD OS Module

N/A

Rear Fan Module

• 2 × 8038 hot-swappable fan modules

• Silent version / PWM control

• High-quality fans with a rated service life of 50,000 hours

HDD Data Cables

• Customized cable lengths available according to customer      requirements

Power Cable

• High-quality dedicated server power cable

• 3C certified

Chassis Front Panel

• Supports 4U front panel customization

Rack Rails

1. 2U support-type rack rails

2. 2U tool-less quick-release ball-bearing full-extension rails

Customer Customization

• Customer logo customization

• Drive tray color customization

• OEM packaging

• ODM customization of chassis appearance and structure

• Other customized solutions available upon request
