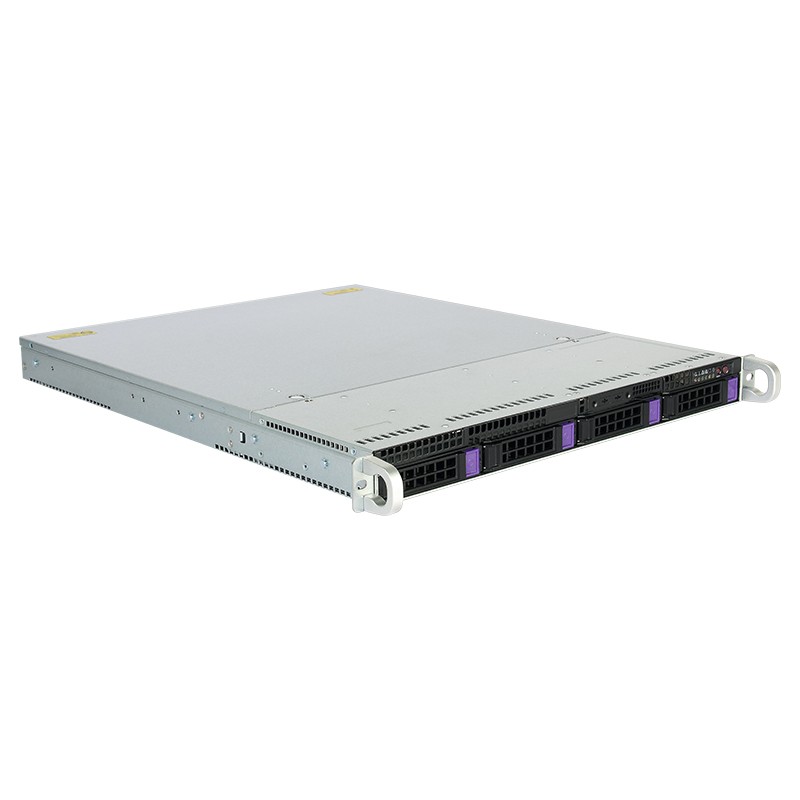

Chassis Model: MMS-3104-M

Size and material: 438.4mm*43.5mm*550mm Taiwan China Steel SGCC 1.0

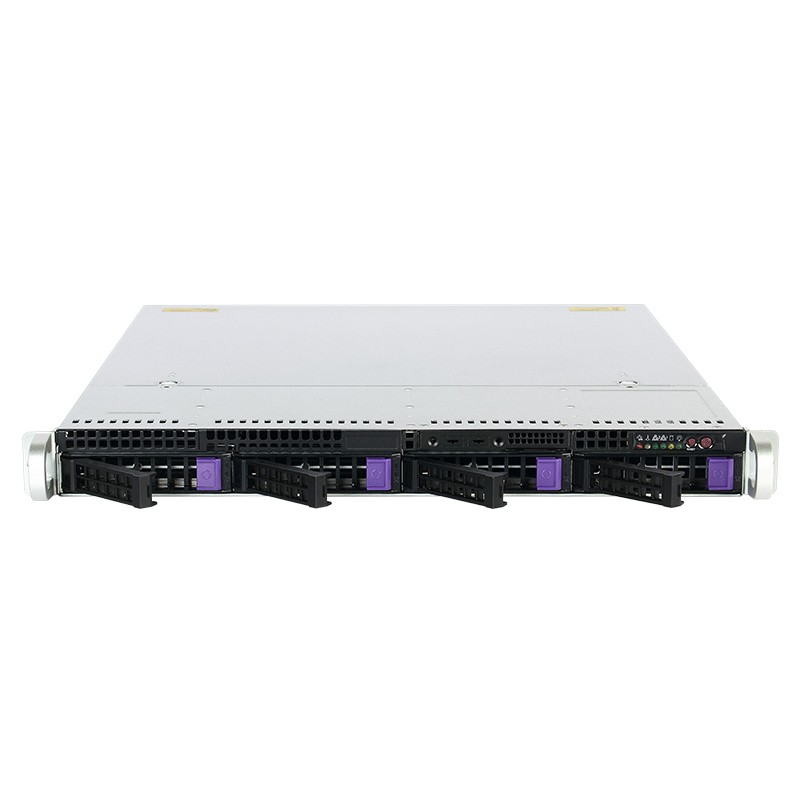

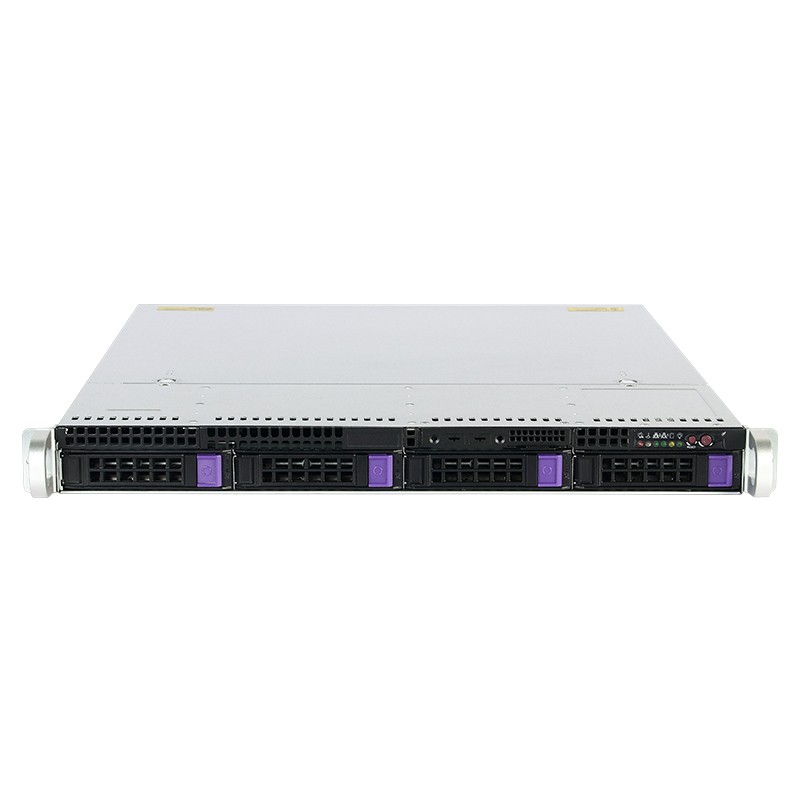

Front description: POWER switch/RESET button, power on/hard disk/network/alarm/status indicator lights,

Support 2 * USB3.0 ports/1 COM port (optional)

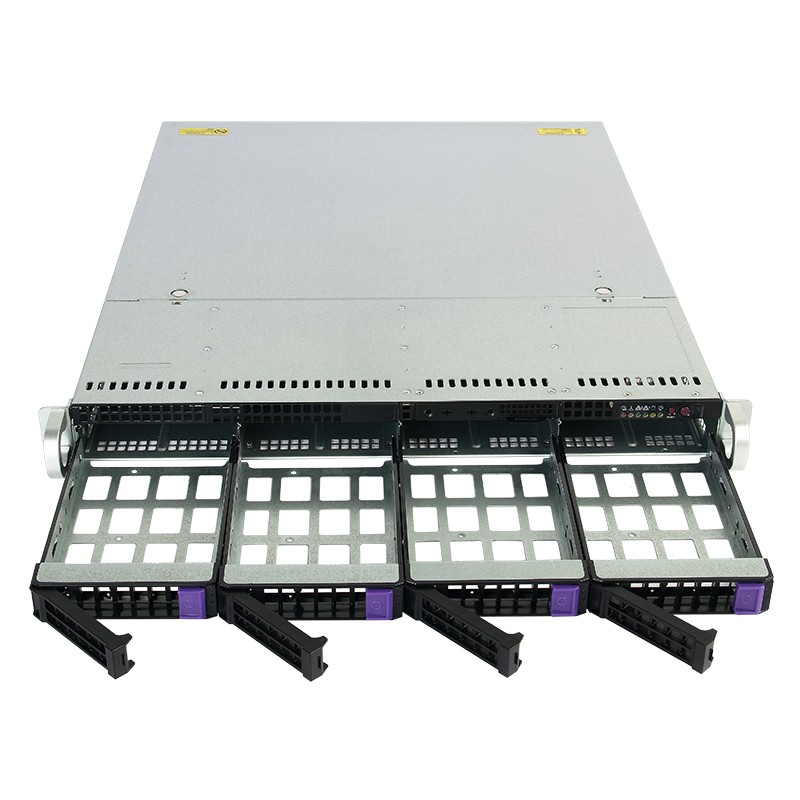

Storage support: 4*3.5” hot-swappable hard disk slots on the front (compatible with 2.5”)

PCI-e expansion: Supports 1 horizontal full-height PCI-e expansion slot

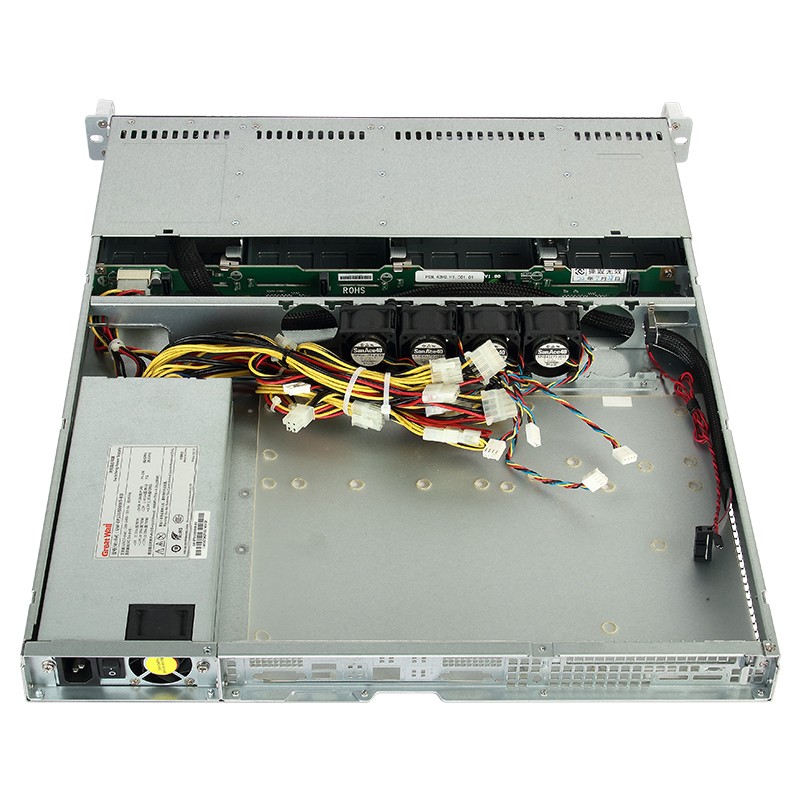

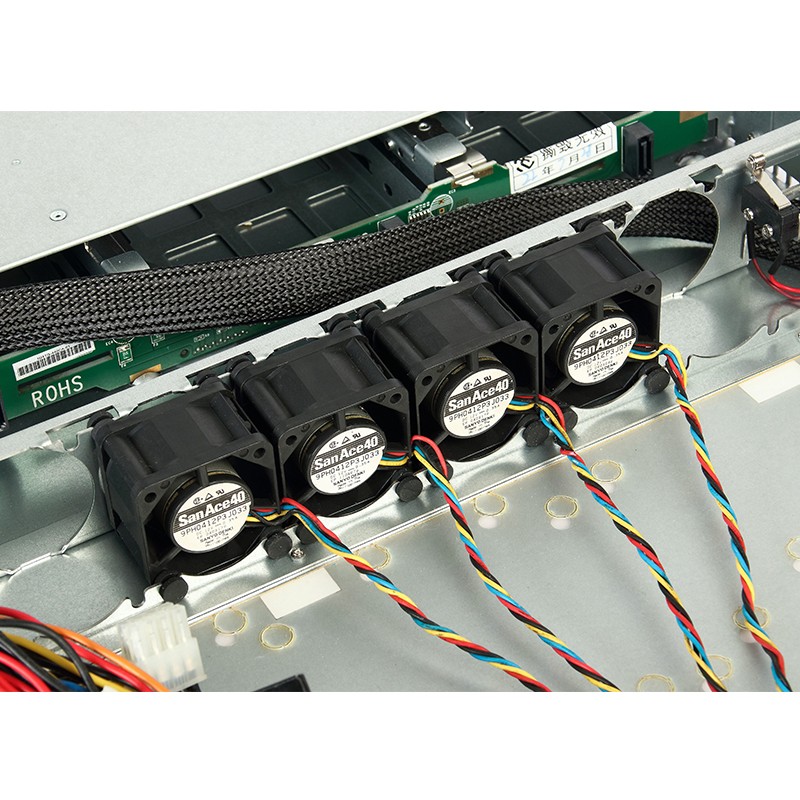

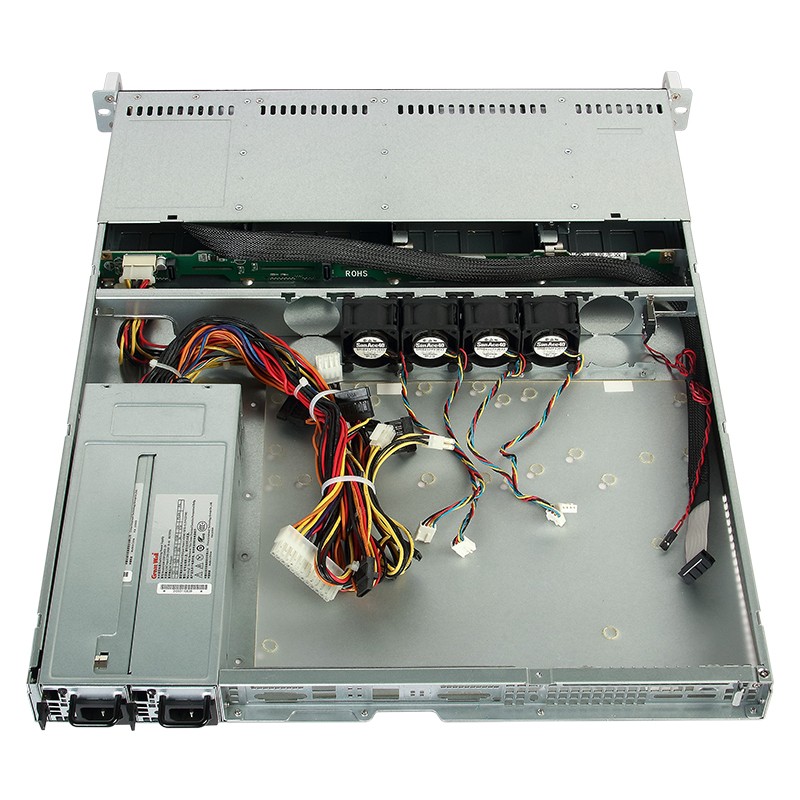

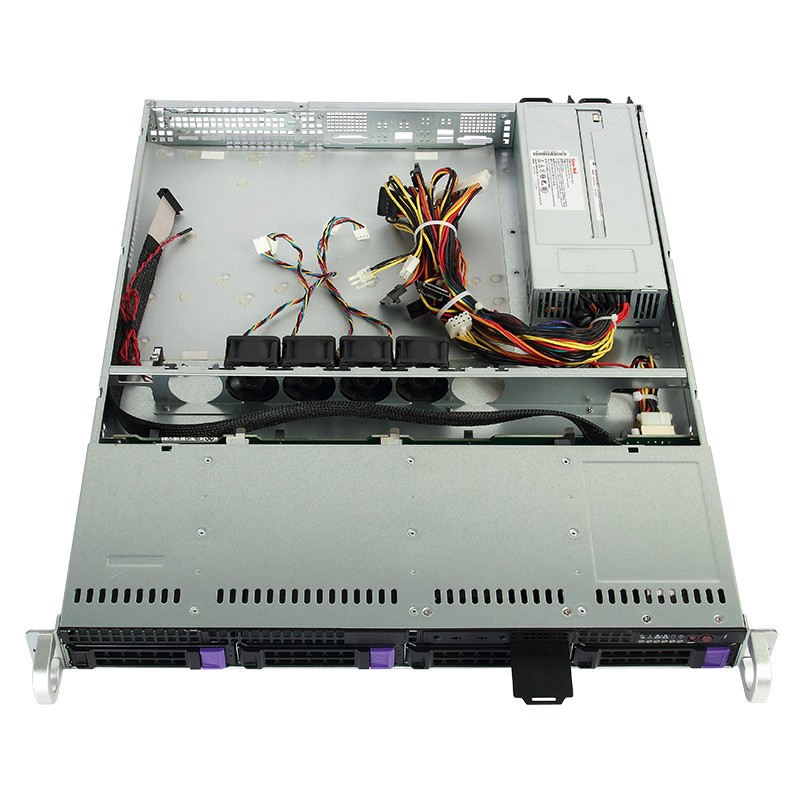

System fan: Overall shock absorption/standard 3 4028 system cooling fan modules, up to 6 (optional)

(Silent version/PWM, high quality fan with 50,000 hours warranty)

Backplane: 6GB SATA/SAS direct-connect backplane

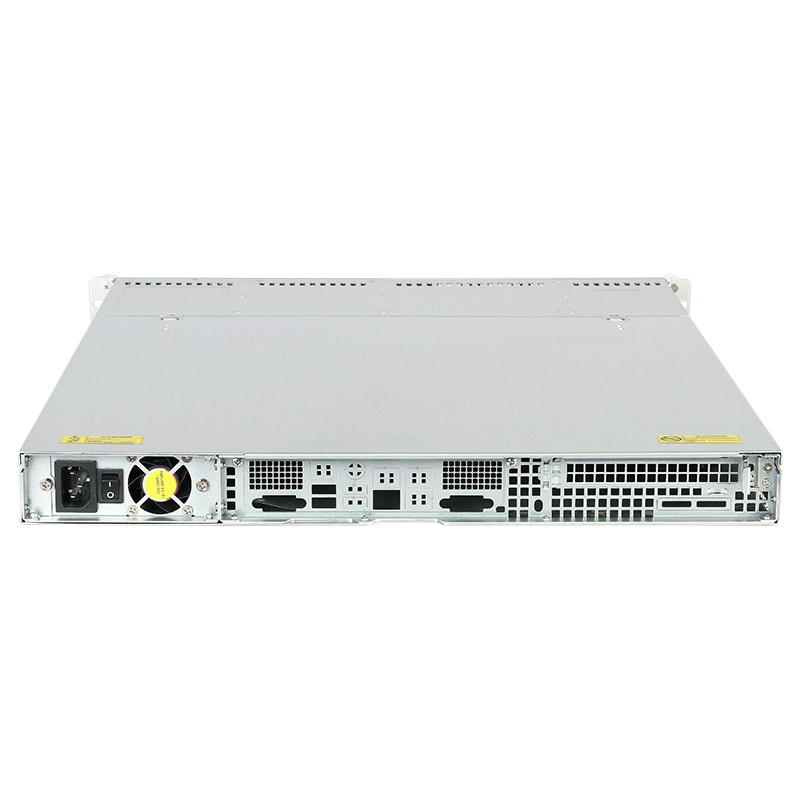

Power supply: Supported specifications: GW-EPS1U400WB Great Wall 400W single power supply (optional)

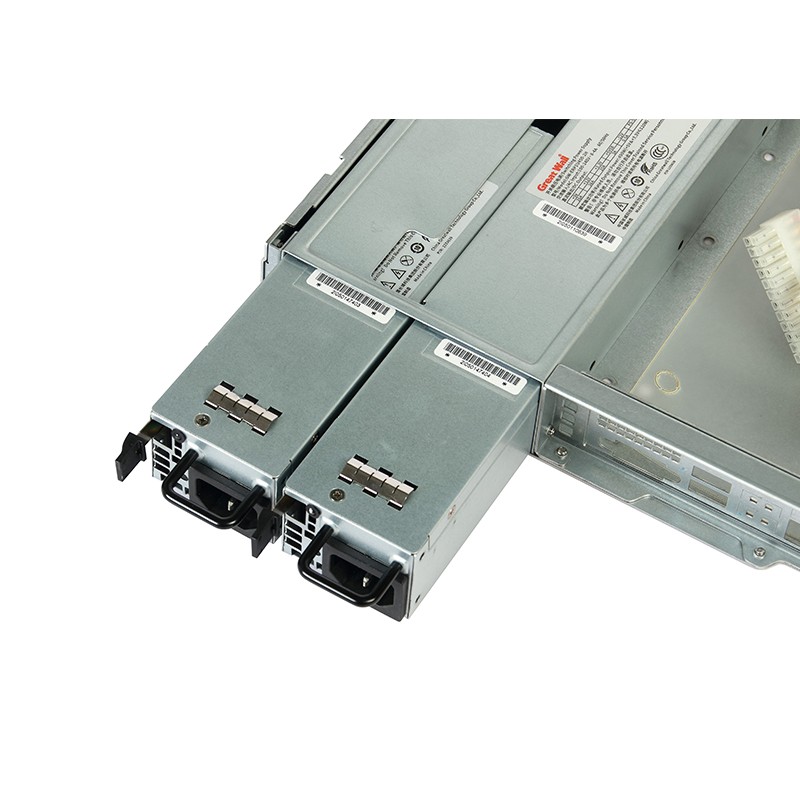

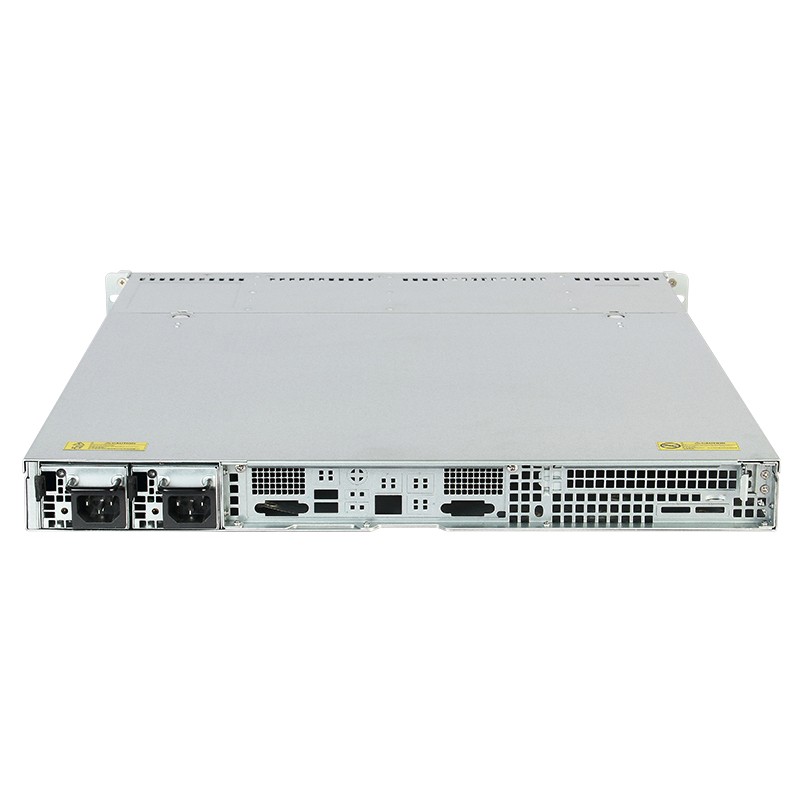

Support specifications: GW-ERP1U450-2H Great Wall 450W 1+1 redundant power (optional)

Motherboard: Maximum support CEB (12 * 10.5) / ATX (12 * 9.5) / Micro ATX standard motherboard

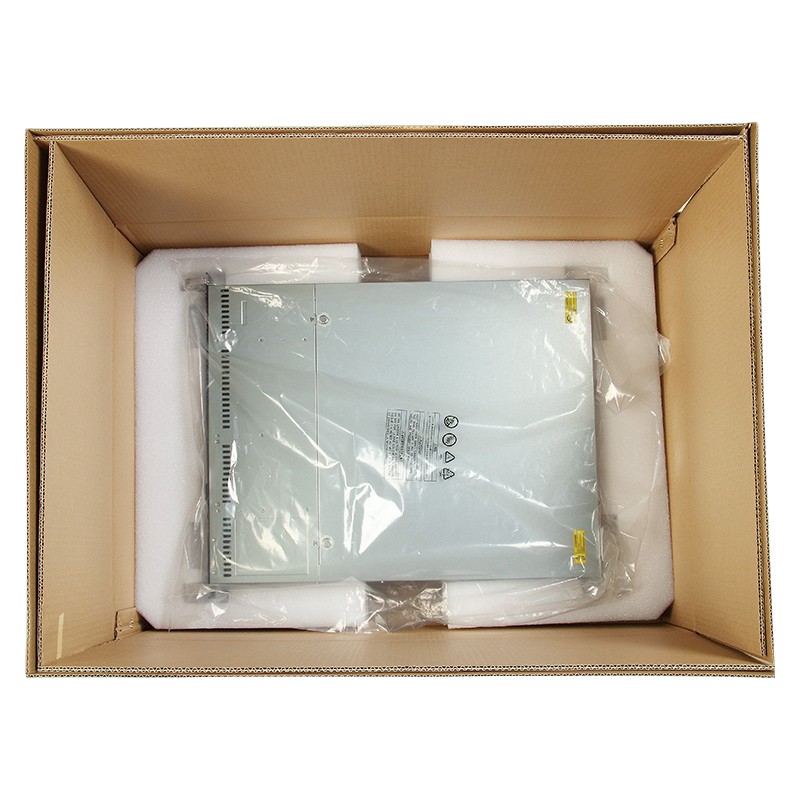

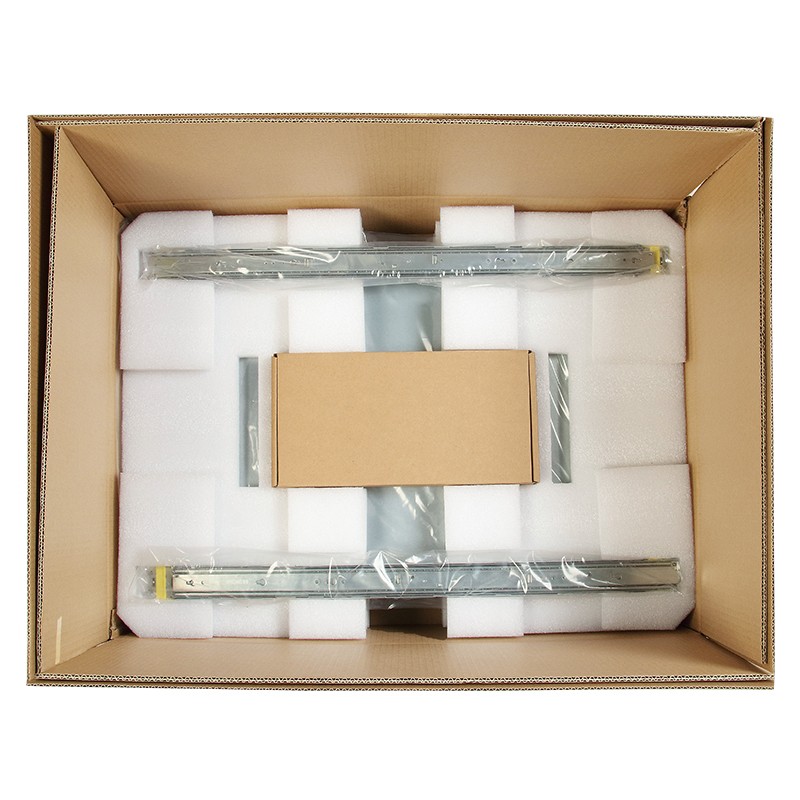

Packaging: EPE + inner and outer box double layer system packaging

Environmental parameters: 10℃ to35℃ working temperature, 8%-90% working humidity (no condensation)

-40℃ to 70℃ storage temperature, 5% to 95% storage humidity (non-condensing)
